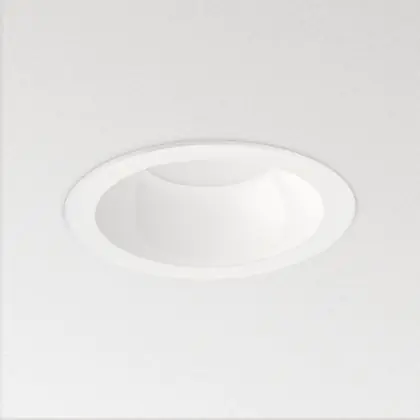

Philips LED Downlight Coreline DN140B 11.5W 1100lm 120D - 840 Cool White | 162mm - White Reflector - Dali Dimmable
£103.80
£86.43
excl. Tax
incl. Tax
£93.43
£77.79
excl. Tax
incl. Tax
+
£0.07
Ecotax
Order before 19:00, shipped today
- Free shipping above £150 incl. TaxFree shipping above £125 excl. Tax
- Business customer? Purchase on account
- Easy returns within 14 days
Don't want to wait? Buy this alternative
Noxion LED Downlight Slim V2.0 12W 1200lm 120D - 840 Cool White | 170mm - Cutout 150mm - IP44 - 1-10v Dimmable
£34.03
£28.29
excl. Tax
incl. Tax
Specifications
Clear
General Information
| SKU | 234584 | |
|---|---|---|
| EAN | 8710163325835 | |
| Manufacturer Code | 32583599 | |
| Brand | Philips | |
| Manufacturer Name | DN140B LED10S/840 PSED-E WR | |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 5 Years |
|
i
The lifespan is an indication of the number of hours a product will last. This refers only to the hours the product is actually on. LED lighting has a significantly longer lifespan than conventional lighting. LED lighting therefore lasts much longer. How long you can actually use a product depends on the extent of its (daily) use. |
Average Lifetime (h) | 50000 |
Technical Information
|
i
 Lighting with a built-in emergency lighting unit (battery) continues to burn for a certain time if the power fails. |
Emergency Lighting | No Emergency Unit |
|---|---|---|
|
i
A fixture with a tiltable design makes it possible to direct the lighting specifically at an object or surface. This can play a particularly important role in shops (putting a new collection in the spotlight) or galleries (accentuating works of art). It can also influence the purchasing behaviour or interpretation of visitors.
|
Tiltable | No |
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED Integrated |
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 2x18 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 11.5W |
|
i
Lighting with a voltage of 220-240 Volt can be connected directly to the mains. Lighting with a different mains voltage (12 Volt and 24 Volt) requires an (electronic) transformer.
|
Voltage (V) | 220-240 |
|
i
Dimmable bulbs work in combination with a dimmer switch and allow you to determine the desired light output. Dimming also provides energy saving potential because less power is required when the lamp is producing less light.
|
Dimmable | Dimmable |
|
i
 The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 840 Cool White |
|
i
|
Colour temperature (Kelvin) | 4000 Cool White |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
By choosing your preferred light colour options, you are one step closer to the right light product. |
Light colour options | Single Color |
| Driver Included | Yes | |
|
i
A beam angle indicates the angle of the light beam coming from a light source. The smaller the radiation angle in degrees (D), the narrower the beam angle.
|
Beam Angle (degree) | 120 |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 1100lm |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Lumen per watt | 96 |
|
i
The power factor indicates how efficiently a luminaire uses electricity. The rule is: the higher the power factor, the more efficient the power consumption. A product with a high power factor (0.85 - 0.95) is also the safest. This is because the amount of unnecessary power consumption (blind current) is very limited.
|
Power factor | >0.95 |
| Installation Depth (mm) | 200 | |
|
i
The Unified Glare Rating (UGR) indicates the extent to which the light of a product is blinding. This value differs per application and must comply with European standards (EN 12464-1). A low UGR value stands for a low glare factor. For offices and schools lighting with a UGR<19 value is mandatory and for public areas UGR<22.
|
Unified Glare Rating | < 25 - for hallways and staircases |
| Optical Cover | PC (Polycarbonate) | |
| Suitable for Outdoor | No | |
| Product Type Category | LED Downlight |
Fixture Information
| EOC8 | 32583500 | |
|---|---|---|
|
i
 Are you specifically looking for an (LED) fixture that you can install on the ceiling, wall or floor? With this filter, you can easily select your preferred type of mounting. Please note that certain fixtures can be mounted in multiple ways using the installation materials supplied (e.g. a LED bulkhead). Mounting is also possible using individually purchasable fixture accessories, such as a frame or suspension kit for a LED panel. |
Mounting Method | Recessed |
|
i
The cut out of a fixture differs from the dimensions and specifically refers to the size of the hole in the ceiling that is required to securely fasten the light source during installation.
|
Cut out (mm) | 150 |
|
i
 The IP value indicates the degree of protection against the ingress of moisture and dust. The 1st digit (0 = not protected until 6 = completely dustproof) indicates the protection against dust. The 2nd digit (0 = not protected until 8 = protected against immersion) indicates the protection against water. Products with an IP44 rating are splashproof and products with an IP65 rating or higher are (completely) dustproof and waterproof. |
IP-Rating | IP20 |
| Operating Temperature | -20 to +40 | |
| Housing | Aluminium | |
|
i
The colour of the fixture can play a major role in the interior design of a room. You can opt for a neutral white design or a darker colour, such as black or silver, to make the light source stand out or even turn it into a decorative feature on its own.
|
Colour of the Fixture | White |
| Colour of material | White | |
| Fixture Connection | PIP [Push-in connector and pull relief] | |
| Series | DN140B |

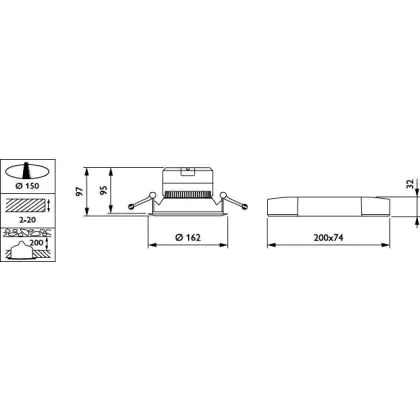

Dimensions
| Height (mm) | 100 | |
|---|---|---|
| Diameter (mm) | 162 |
Sensor Information
|
i
Lighting with a sensor only turns on when it receives a specific signal. This reduces energy costs. The (built-in) sensors respond to darkness (twilight switch) and/or movement (motion sensor).
|
Type of sensor | No Sensor |
|---|
