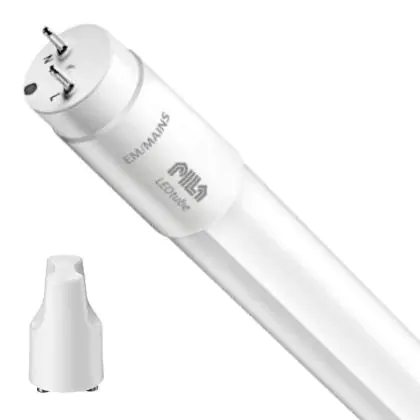

Pila LED Tube T8 (Mains) 14.5W 1600lm - 840 Cool White | 120cm - Replaces 36W
Need help?
Contact our light specialists for free advice.- Free shipping above £150 incl. TaxFree shipping above £125 excl. Tax
- Business customer? Purchase on account
- Easy returns within 14 days
Specifications
Clear
General Information
| SKU | 235711 | |
|---|---|---|
| EAN | 8718696734506 | |
| Manufacturer Code | 929001173062 | |
| Brand | Other | |
| Manufacturer Name | Pila LED tube 1200mm 14.5W 840 G13 | |
|
i
The recommended quantity refers to the number of products pre-packaged by the manufacturer. When you buy this quantity, we deliver the products in the original package from the manufacturer.
|
Full box quantity | 10 |
|
i
Our all-in warranty is fully included in the product price and covers both hidden defects and technical defects of the product that occurred before delivery. The warranty period differs per product and ranges from 1 year to a maximum of 7 years.
|
Any Lamp all-in warranty | 2 Years |
| Energy efficiency class old | A+ | |
|
i
The lifespan is an indication of the number of hours a product will last. This refers only to the hours the product is actually on. LED lighting has a significantly longer lifespan than conventional lighting. LED lighting therefore lasts much longer. How long you can actually use a product depends on the extent of its (daily) use. |
Average Lifetime (h) | 25000 |
Technical Information
|
i
The technology indicates the operating base of a light source. The most well-known and energy-efficient example is LED. Other techniques include Halogen, gas discharge, TL (fluorescent) and the light bulb.
|
Technology | LED |
|---|---|---|
|
i
This indicates which wattage of your old/conventional lighting is replaced by this LED product.
|
Replaces (Watt) | 36 |
|
i
The wattage indicates how much energy a light source consumes. With LED lighting, the wattage is considerably lower than with conventional lighting. LED lamps with a higher wattage generally also have a higher light intensity (number of lumens).
|
Wattage | 14.5W |
|
i
Dimmable bulbs work in combination with a dimmer switch and allow you to determine the desired light output. Dimming also provides energy saving potential because less power is required when the lamp is producing less light.
|
Dimmable | Not Dimmable |
|
i
The cap/base of a bulb is the part that connects it to the socket in the fixture. In the UK, B22 (Bayonet) caps/bases are still the most popular, although E27 (Edison screw) caps/bases are becoming increasingly popular. GU10 is the most common cap/base for spotlights. Check which cap/base you need carefully as many other types are also available.
|
Cap / Base | G13 |
|
i
Because you can set the direction of the light yourself, a rotatable LED tube is extra efficient with energy. Moreover, the light does not shine around 360 degrees unnecessarily, as is the case with conventional fluorescent tubes.
|
Rotatable | No |
|
i
 The colour code is a combination of colour rendering (CRI) and light colour (Kelvin). The first number indicates the colour rendering (1 = very poor colour rendering, 9 = maximum colour fastness). The second and third number contains the light colour. Example: the colour code 830 consists of good colour rendering (8) and warm white light (3000K). |
Colour Code | 840 Cool White |
|
i
|
Colour temperature (Kelvin) | 4000 Cool White |
|
i
Colour rendering is also known as Colour Rendering Index (CRI) and indicates the extent to which a light source reproduces colours, compared to the actual colours in daylight. Products with a good (80-89 Ra) or excellent (90-99 Ra) colour rendering show minimal deviations in the colour spectrum.
|
Colour Rendering (Ra) | 80-89 |
|
i
The light color indicates the color of the light emitted: white, colored, or UV. For many products in our assortment, the light is white, available in a range from very warm white to daylight white (expressed in Kelvin). With colored light, you have two options: 1. A single fixed color, such as red or green. 2. RGBW, which means you can adjust the light color at any time: white or colored.
|
Colour of Light | White |
|
i
The colour control type tells you in which way you can regulate the colour of the light. You have the following options:
By choosing your preferred light colour options, you are one step closer to the right light product. |
Light colour options | Single Color |
|
i
The number of lumens (lm) is the light output of a light source. The higher the number of lumens, the more light the light source emits. The wattage and the number of lumens are not connected to each other. An LED lamp with a low wattage can have a higher number of lumens than a conventional lamp with a high wattage.
|
Luminous Flux (Lumen) | 1600lm |
|
i
The Luminous Efficacy (lm/W) indicates how efficiently a light source uses energy. We divide the number of lumens by the wattage. The higher the number, the more efficient a product is in terms of energy consumption. LED lighting has a considerably higher lumen/Watt ratio than conventional lighting.
|
Lumen per watt | 110.3 |
| Product Type Category | LED Tube T8 | |
|
i
Lighting with a sensor only turns on when it receives a specific signal. This reduces energy costs. The (built-in) sensors respond to darkness (twilight switch) and/or movement (motion sensor).
|
Type of sensor | No Sensor |
Lamp Information
|
i
You need a LED starter if the fluorescent lighting in your current fixture also contains a starter. In that case, you have a fixture with a conventional ballast (EM). A LED starter replaces your current starter and ensures that a LED tube works.
|
LED Starter included | No |
|---|---|---|
| Requires Ballast | No | |
|
i
A ballast can be seen as an energy regulator that switches on the lighting. Is there a starter in the fixture? Then this is a conventional ballast (EM). Fixtures with an electronic ballast (HF) don't have a starter. A LED driver can be compared to an electronic ballast and only works with LED lighting.
|
Ballast for LED Tubes | Mains – Directly connected to 230V |
|
i
|
LED Tube Output | Standard Output |
| Series | LEDtube |
Dimensions
|
i
 The most common lengths for T8 LED Tubes are 60cm, 90cm, 120cm and 150cm. For T5 LED Tubes this concerns 55cm, 85cm, 115cm and 145cm. Switching to LED? Then always check the length of your current fluorescent lighting. |
Length | 120cm |
|---|---|---|
|
i
It may happen that the length of this product differs from your old lighting fixture. As a result, the product does not fit in your current fixture or in the relevant place.
|
Length (mm) | 1200 |
| Diameter (mm) | 28 |
Downloads
Description Pila LED Tube T8 (Mains) 14.5W 1600lm - 840 Cool White | 120cm - Replaces 36W
This 14.5W T8 LED tube from Other easily replaces 36W TL-D tubes and offers the following specifications:
- Length: 120cm.
- Light colour: 4000 Cool White.
- Standard Output with an efficiency of 110.3 lm/W.
- Mains (AC) runs directly on 230V mains power.
High quality, excellent efficiency ...
With Other, you benefit from top-class T8 LED tube lighting. Whereas the fluorescent predecessor spread light all around, this LED focuses on the area that needs to be illuminated. That makes them much more energy-efficient. This specific tube has an average lifespan of 25000 hours, which is reflected in the warranty period of 2 Years.
Important for installation!
This T8 LED tube is connected directly to 230V mains power, which means the tube can be used in LED battens or modified fluorescent fixtures (ballast removed). Good to know: Mains-powered tubes are more efficient than ballast-compatible tubes.
Please note! If you install the tube in a fluorescent fixture from which you have removed the ballast, the CE conformity of the fixture may change. In professional environments, this must be properly documented (re-certification or documentation).
Tip: How to measure a T8 LED tube!
To measure a fluorescent tube or a LED tube, proceed as follows: measure from one end of the tube to the other, including the length of the pins.
